satComControl.h File Reference

IMS: ccNOos, Declarations for straight C and C++ More...

#include "motionControl.h"

Include dependency graph for satComControl.h:

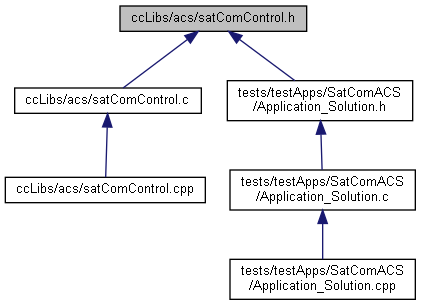

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	satelliteStruct
struct	commsParameters
struct	geoLocationStruct
struct	antennaAttitudeStruct
struct	antennaAxis
struct	antennaStruct

Enumerations
enum	antennaState {   antState_init, antState_NotAcquired, antState_Acquiring, antState_Acquired,   antState_Error }

Functions
struct satelliteStruct	createSatelliteStruct ()
struct commsParameters	createcommsParameters ()
struct geoLocationStruct	creategeoLocationStruct ()
struct antennaAttitudeStruct	createantennaAttitudeStruct ()
struct antennaAxis	createantennaAxis ()
struct antennaStruct	createantennaStruct ()
UI_8	CalculateLookAngle (struct antennaStruct *antStructInPtr)
UI_8	CalculatePedestalCoords (struct antennaStruct *antStructInPtr)
UI_8	CalculateWorldCoords (struct antennaStruct *antStructInPtr)

Detailed Description

IMS: ccNOos, Declarations for straight C and C++

Copyright 2021 InMechaSol, Inc

Licensed under the Apache License, Version 2.0(the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Notes: (.c includes .h) - for straight C or (.cpp includes .c which includes .h) - for C++ wrapped straight C Always compiled to a single compilation unit, either C or CPP, not both

Definition in file satComControl.h.

Enumeration Type Documentation

antennaState

enum antennaState

Enumerator
antState_init
antState_NotAcquired
antState_Acquiring
antState_Acquired
antState_Error

Definition at line 83 of file satComControl.h.

{
    antState_init,
    antState_NotAcquired,
    antState_Acquiring,
    antState_Acquired,
    antState_Error
};

Function Documentation

CalculateLookAngle()

UI_8 CalculateLookAngle

(

struct antennaStruct *

antStructInPtr

)

Definition at line 83 of file satComControl.c.

{
    if(antStructInPtr->State)
    {
        ;
    }
    return ui8FALSE;
}

CalculatePedestalCoords()

UI_8 CalculatePedestalCoords

(

struct antennaStruct *

antStructInPtr

)

CalculateWorldCoords()

UI_8 CalculateWorldCoords

(

struct antennaStruct *

antStructInPtr

)

createantennaAttitudeStruct()

struct antennaAttitudeStruct createantennaAttitudeStruct

(

)

Definition at line 1 of file satComControl.c.

{
    struct antennaAttitudeStruct outStruct;
    outStruct.pitch = 0;
    outStruct.roll = 0;
    outStruct.yaw = 0;
    return outStruct;
}

createantennaAxis()

struct antennaAxis createantennaAxis

(

)

Definition at line 1 of file satComControl.c.

{
    struct antennaAxis outStruct;
    outStruct.Pedestal = createaxisStruct();
    outStruct.World = createaxisStruct();
    return outStruct;
}

createantennaStruct()

struct antennaStruct createantennaStruct

(

)

Definition at line 1 of file satComControl.c.

{
    struct antennaStruct outStruct;
    outStruct.State = antState_init;
    outStruct.GeoLocation = creategeoLocationStruct();
    outStruct.AzimuthAxis = createantennaAxis();
    outStruct.ElevationAxis = createantennaAxis();
    outStruct.ReflectorAttitude = createantennaAttitudeStruct();
    outStruct.BaseAttitude = createantennaAttitudeStruct();
    outStruct.TargetSatellite = createSatelliteStruct();
    outStruct.CommSystem = createcommsParameters();
    return outStruct;
}

createcommsParameters()

struct commsParameters createcommsParameters

(

)

Definition at line 1 of file satComControl.c.

{
    struct commsParameters outStruct;
    outStruct.Rx_LO_MHz = 0;
    outStruct.Tx_LO_MHz = 0;
    outStruct.RxSignalStrengthMetric = 0;
    return outStruct;
}

creategeoLocationStruct()

struct geoLocationStruct creategeoLocationStruct

(

)

Definition at line 1 of file satComControl.c.

{
    struct geoLocationStruct outStruct;
    outStruct.altitude = 0;
    outStruct.latitude = 0;
    outStruct.longitude = 0;
    return outStruct;
}

createSatelliteStruct()

struct satelliteStruct createSatelliteStruct

(

)

Definition at line 1 of file satComControl.c.

{
    struct satelliteStruct outStruct;
    outStruct.UpLinkFreq_kHz = 0;
    outStruct.DownLinkFreq_kHz = 0;
    outStruct.SSP_Lattitude = 0;
    outStruct.SSP_Longitude = 0;
    outStruct.SSP_Altitude = 0;
    return outStruct;
}
